Road Case For The DSC214 Calorimeter

roadcase dc214 n ic40 3

These are custom-made road cases for the DSC214 Calorimeter; they were commissioned by our client, an operator of a chemical analysis lab here in Sydney.

The internal dimension of the unit is approximately 340 x 807 x 245 mm (WxDxH).

roadcase dc214 n ic40 1 1

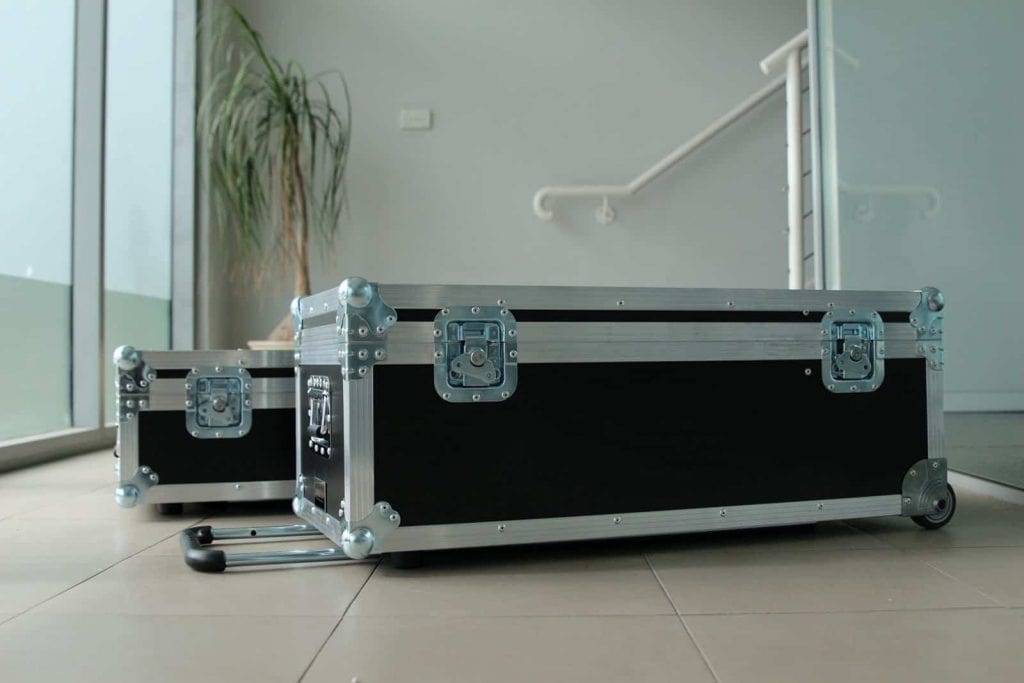

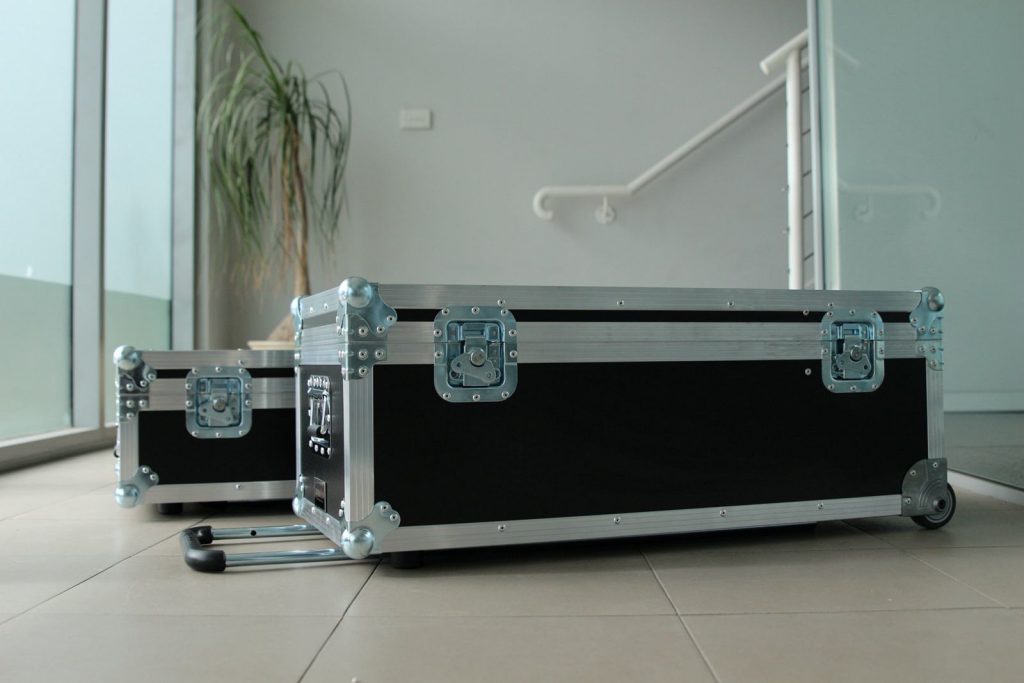

Road case with pull-out handle

The frame of this road case is constructed out of 9mm laminated plywood with black PVC finish. For optimal protection, the interior of the case is lined with thick 10mm EVA foam.

The front of the case is fitted with two butterfly latches, in addition to two handles on the right and left sides of the case. This is alongside the built-in pull-out handle.

roadcase dc214 n ic40 3 1

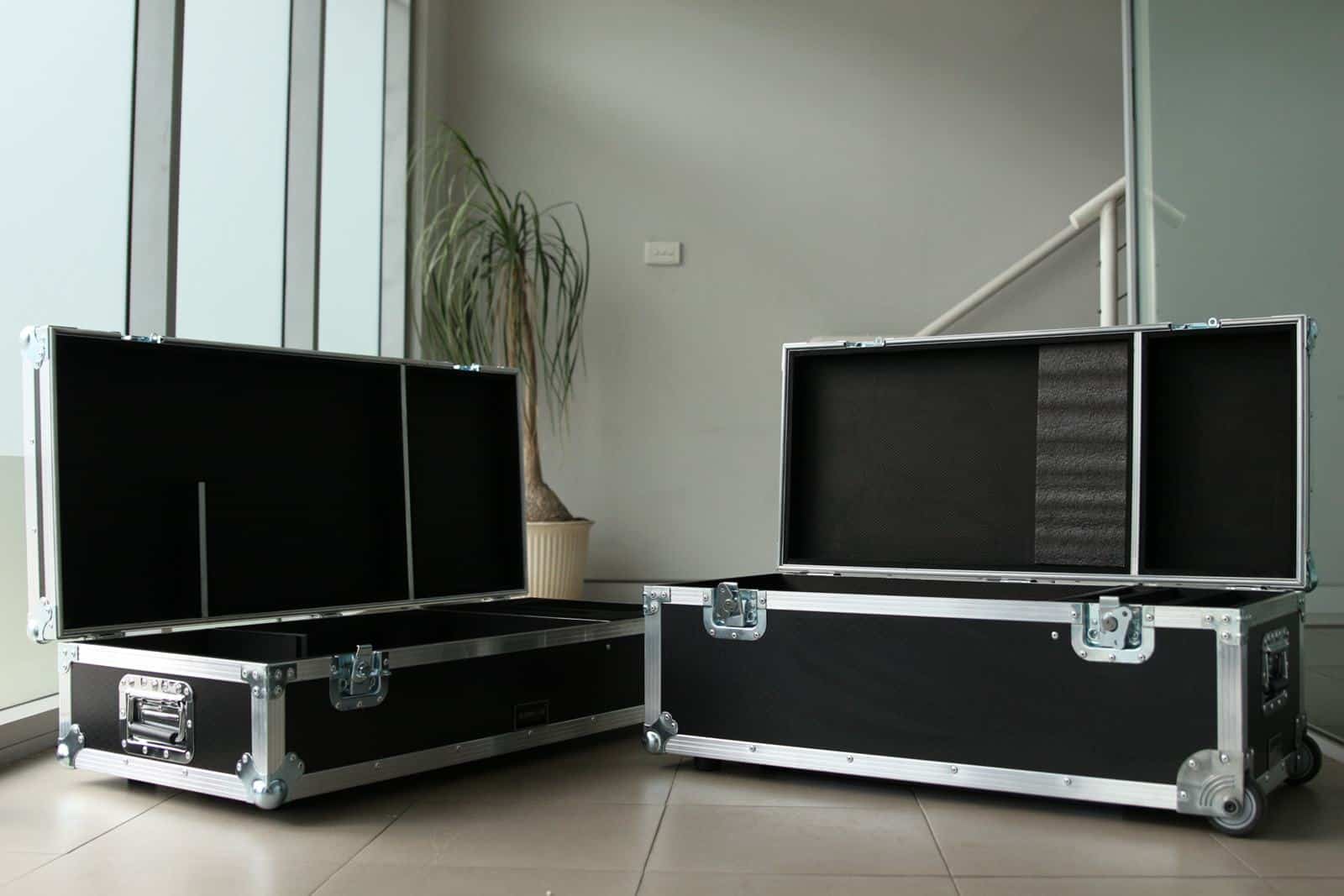

Road cases with hinged lids

For improved stability, we fitted it with three internal foam dividers for holding components of the case.

Movement is achieved through two recessed castors. Heavy-duty aluminium extrusions and steel ball corners act as a line of defence against forceful impact.

Full Specification

  • Internal Dimensions: 340W*807D*245H(mm)
  • 9mm Laminated Plywood w/ Black PVC Finish
  • Heavy-Duty Aluminium Extrusions
  • 10mm EVA Foam Lining
  • 2x Latches (front of the case)
  • 2x Handles (on right & left sides of the case)
  • 2x Recessed Castors
  • 3x Internal Dividers
  • 1x Pull-Out Handle
  • Internal Foam Cut-Outs

All our cases are backed by a five-year warranty!
